Redline High Pressure Gauge Glass Bundle In Stock

Item Name:

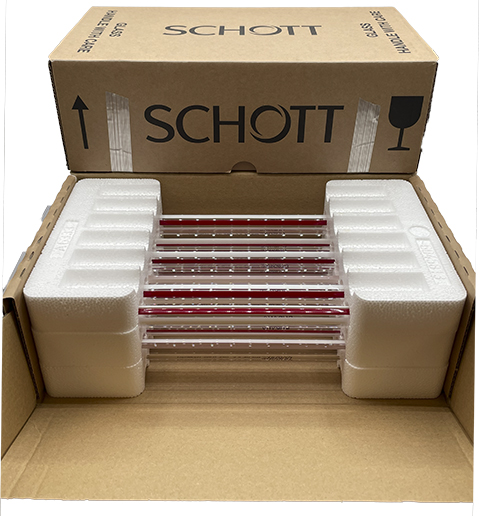

Redline Tubular Gage Glass Bundle

Description:
Schott Duran® and Corning Pyrex® tubular gauge glass is offered as red line or clear, in either high pressure or heavy wall. Diameters range from 1/2" OD to 3/4" OD. End finishes may be cut, ground, or fire polished depending on application. Pressure ratings range from 90 PSI to 600 PSI depending on end finish, diameter, and length required.


These Bundles are sold by the DOZEN (12pcs) at a discounted rate! Discounts vary depending on quantity:

  • 1-3 Bundles - 10% OFF
  • 4-6 Bundles - 25% OFF
  • 7 Bundles or more - 35% OFF

*Longer Lengths over 72" can be purchased by calling us at 770-957-9599*

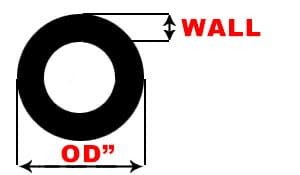

*Please note that dimensions are "OD” and Wall Thickness*



1" OD OR LARGER IS NO LONGER MADE IN REDLINE

Shipping Time: Same Day In Stock
All OD of Glass is (+0 , - 1/32") Wall Thickness 3/32" (+ 1/64", -1/64" )
Size Length Temperature
Up to
150°F @ PSI
Steam Service
425°F @ PSI
Description Price Qty
5/8" O.D. 8" 370 285 RLHP-588-BDL | 5/8" O.D. | 8" Length $226.12 Add to Cart
5/8" O.D. 10" 345 280 RLHP-5810-BDL | 5/8" O.D. | 10" Length $272.45 Add to Cart
5/8" O.D. 12" 335 280 RLHP-5812-BDL | 5/8" O.D. | 12" Length $329.08 Add to Cart
5/8" O.D. 14" 325 275 RLHP-5814-BDL | 5/8" O.D. | 14" Length $375.14 Add to Cart
5/8" O.D. 16" 315 265 RLHP-5816-BDL | 5/8" O.D. | 16" Length $427.68 Add to Cart
5/8" O.D. 18" 305 265 RLHP-5818-BDL | 5/8" O.D. | 18" Length $474.01 Add to Cart
5/8" O.D. 20" 290 265 RLHP-5820-BDL | 5/8" O.D. | 20" Length $555.32 Add to Cart
5/8" O.D. 24" 265 255 RLHP-5824-BDL | 5/8" O.D. | 24" Length $660.00 Add to Cart
5/8" O.D. 30" 235 Not Recommended RLHP-5830-BDL | 5/8" O.D. | 30" Length $818.66 Add to Cart
5/8" O.D. 36" 205 Not Recommended RLHP-5836-BDL | 5/8" O.D. | 36" Length $977.06 Add to Cart
5/8" O.D. 48" 165 Not Recommended RLHP-5848-BDL | 5/8" O.D. | 48" Length $1,298.88 Add to Cart
5/8" O.D. 60" 125 Not Recommended RLHP-5860-BDL | 5/8" O.D. | 60" Length $1,637.06 Add to Cart
5/8" O.D. 72" 90 Not Recommended RLHP-5872-BDL | 5/8" O.D. | 72" Length $2,053.92 Add to Cart
All OD of Glass is (+0 , - 1/32") Wall Thickness 7/64" (+ 1/64", -1/64" )
Size Length Temperature
Up to
150°F @ PSI
Steam Service
425°F @ PSI
Description Price Qty
3/4" O.D. 8" 390 280 RLHP-348-BDL | 3/4" O.D. | 8" Length $233.24 Add to Cart
3/4" O.D. 10" 340 275 RLHP-3410-BDL | 3/4" O.D. | 10" Length $300.43 Add to Cart
3/4" O.D. 12" 330 275 RLHP-3412-BDL | 3/4" O.D. | 12" Length $356.93 Add to Cart
3/4" O.D. 14" 320 270 RLHP-3414-BDL | 3/4" O.D. | 14" Length $410.92 Add to Cart
3/4" O.D. 16" 310 265 RLHP-3416-BDL | 3/4" O.D. | 16" Length $460.28 Add to Cart
3/4" O.D. 18" 300 260 RLHP-3418-BDL | 3/4" O.D. | 18" Length $508.07 Add to Cart
3/4" O.D. 20" 285 260 RLHP-3420-BDL | 3/4" O.D. | 20" Length $602.18 Add to Cart
3/4" O.D. 24" 260 250 RLHP-3424-BDL | 3/4" O.D. | 24" Length $731.81 Add to Cart
3/4" O.D. 30" 230 Not Recommended RLHP-3430-BDL | 3/4" O.D. | 30" Length $912.78 Add to Cart
3/4" O.D. 36" 200 Not Recommended RLHP-3436-BDL | 3/4" O.D. | 36" Length $1,072.76 Add to Cart
3/4" O.D. 48" 160 Not Recommended RLHP-3448-BDL | 3/4" O.D. | 48" Length $1,414.51 Add to Cart
3/4" O.D. 60" 125 Not Recommended RLHP-3460-BDL | 3/4" O.D. | 60" Length $1,818.04 Add to Cart
3/4" O.D. 72" 190 Not Recommended Redline Tubular
Gauge Glass | 3/4" O.D. | 72" Length
$2,315.54 Add to Cart
All OD of Glass is (+0 , - 1/32") Wall Thickness 5/64" (+ 1/64", -1/64" )
Size Length Temperature
Up to
150°F @ PSI
Steam Service
425°F @ PSI
Description
1/2" O.D. 8" 390 300 RLHP-128-BDL | 1/2" O.D. | 8" Length
1/2" O.D. 10" 370 295 RLHP-1210-BDL | 1/2" O.D. | 10" Length
1/2" O.D. 12" 360 295 RLHP-1212-BDL | 1/2" O.D. | 12" Length
1/2" O.D. 14" 345 290 RLHP-1214-BDL | 1/2" O.D. | 14" Length
1/2" O.D. 16" 335 285 RLHP-1216-BDL | 1/2" O.D. | 16" Length
1/2" O.D. 18" 325 280 RLHP-1218-BDL | 1/2" O.D. | 18" Length
1/2" O.D. 20" 310 280 RLHP-1220-BDL | 1/2" O.D. | 20" Length
1/2" O.D. 24" 280 270 RLHP-1224-BDL | 1/2" O.D. | 24" Length
1/2" O.D. 30" 250 Not Recommended RLHP-1230-BDL | 1/2" O.D. | 30" Length
1/2" O.D. 36" 250 Not Recommended RLHP-1236-BDL | 1/2" O.D. | 36" Length
1/2" O.D. 48" 175 Not Recommended RLHP-1248-BDL | 1/2" O.D. | 48" Length
1/2" O.D. 60" 135 Not Recommended RLHP-1260-BDL | 1/2" O.D. | 60" Length
1/2" O.D. 72" 100 Not Recommended RLHP-1272-BDL | 1/2" O.D. | 72" Length
