Redline Heavy Wall Gage Glass In Stock

Item Name:

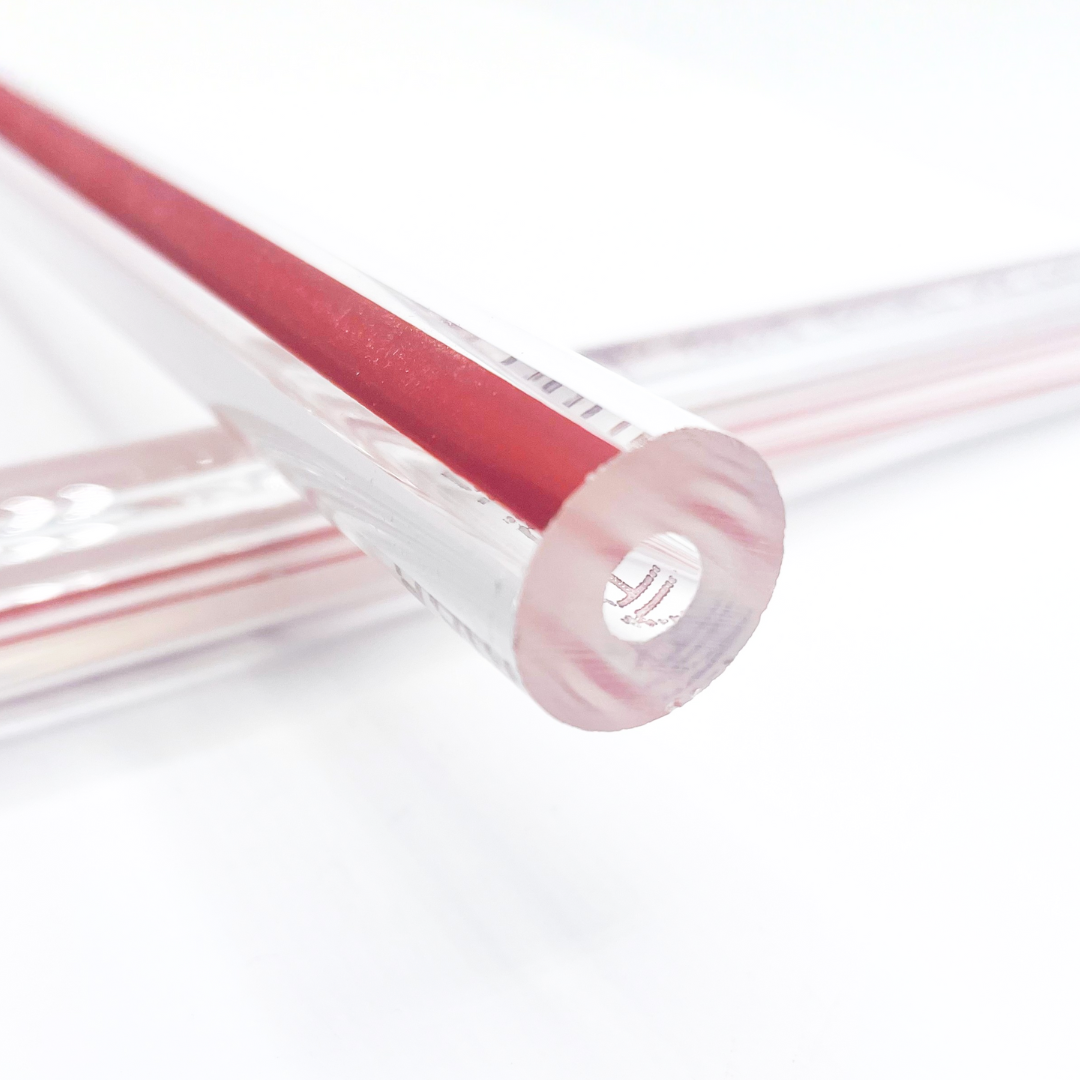

Redline Heavy Wall Tubular Gage Glass

Description:
Schott Duran® and Corning Pyrex® tubular gauge glass is offered as red line or clear, in either high pressure or heavy wall. Diameters range from 1/2" OD to 3/4" OD. End finishes may be cut, ground, or fire polished depending on application. Pressure ratings range from 90 PSI to 600 PSI depending on end finish, diameter, and length required.

Glass can be purchased in special cut lengths with our one step glass ordering system below or you can purchase standard stock lengths in the tables as well. Longer lengths over 72" can be purchased by calling us at 770-957-9599

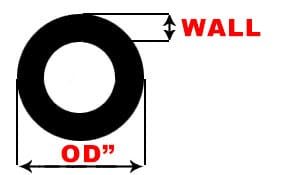

*Please note that dimensions are "OD” and Wall Thickness*

*All custom cut lengths are non-returnable*



*48" is the maximum length for heavywall glass*
Shipping Time: Same Day In Stock
Express ship options available

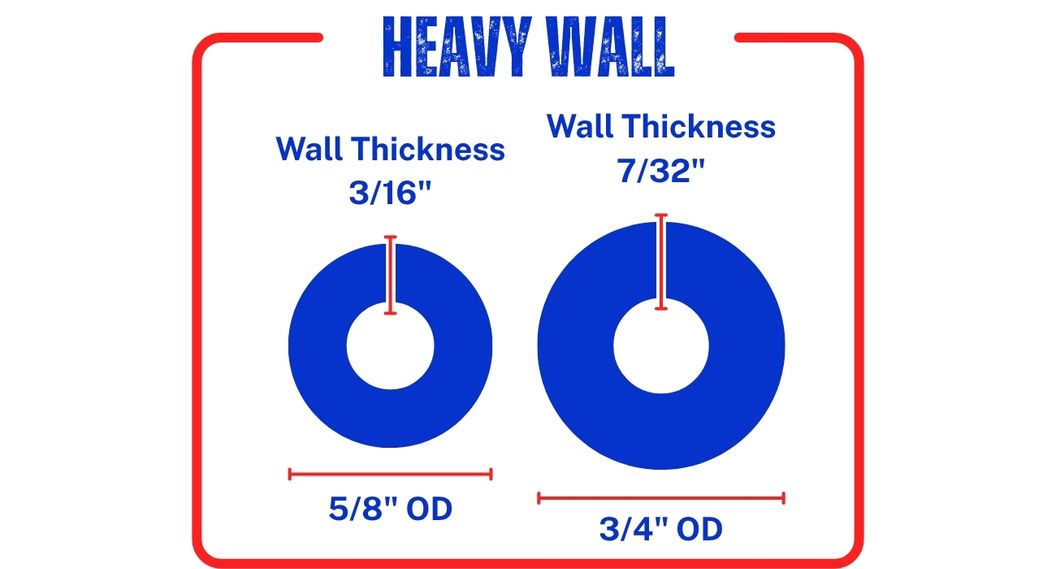

All OD of Glass is (+1/64 , - 3/64") Wall Thickness 3/16" (+ 3/64", -0)
Size Length Temperature
Up to
150°F @ PSI 		Steam Service
425°F @ PSI 		Description Price Qty
5/8" O.D. 12" 600 340 RLHW-625-12 | 5/8" O.D. | 12" Length $60.64 Add to Cart
5/8" O.D. 16" 600 325 RLHW-625-16 | 5/8" O.D. | 16" Length $105.90 Add to Cart
5/8" O.D. 20" 600 315 RLHW-625-20 | 5/8" O.D. | 20" Length $105.90 Add to Cart
5/8" O.D. 24" 580 300 RLHW-625-24 | 5/8" O.D. | 24" Length $105.90 Add to Cart
5/8" O.D. 30" 550 Not Recommended RLHW-625-30 | 5/8" O.D. | 30" Length $132.56 Add to Cart
5/8" O.D. 36" * 500 Not Recommended RLHW-625-36 | 5/8" O.D. | 36" Length $132.56 Add to Cart
5/8" O.D. 48" *
(Max) 		340 Not Recommended RLHW-625-48 | 5/8" O.D. | 48" Length $173.00 Add to Cart
All OD of Glass is (+1/64 , - 3/64") Wall Thickness 7/32" (+ 1/16", -0)
Size Length Temperature
Up to
150°F @ PSI 		Steam Service
425°F @ PSI 		Description Price Qty
3/4" O.D. 12" 600 340 RLHW-75-12 | 3/4" O.D. | 12" Length $43.19 Add to Cart
3/4" O.D. 16" 600 325 RLHW-75-16 | 3/4" O.D. | 16" Length $83.88 Add to Cart
3/4" O.D. 20" 600 315 RLHW-75-20 | 3/4" O.D. | 20" Length $83.88 Add to Cart
3/4" O.D. 24" 580 300 RLHW-75-24 | 3/4" O.D. | 24" Length $83.88 Add to Cart
3/4" O.D. 30" 550 Not Recommended RLHW-75-30 | 3/4" O.D. | 30" Length $123.40 Add to Cart
3/4" O.D. 36" * 500 Not Recommended RLHW-75-36 | 3/4" O.D. | 36" Length $136.64 Add to Cart
3/4" O.D. 48" *
(Max) 		340 Not Recommended RLHW-75-48 | 3/4" O.D. | 48" Length $136.64 Add to Cart
