Clear Heavy Wall Gauge Glass Bundle In Stock

Item Name:

Clear Heavy Wall Tubular Gage Glass Bundle

Description:

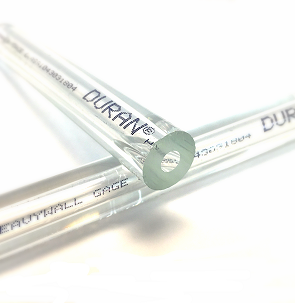

Schott Duran® and Corning Pyrex® tubular gauge glass is offered as red line or clear, in either high pressure or heavy wall. Diameters range from 1/2" OD to 1-1/2" OD. End finishes may be cut, ground, or fire polished depending on application. Pressure ratings range from 90 PSI to 600 PSI depending on end finish, diameter, and length required.

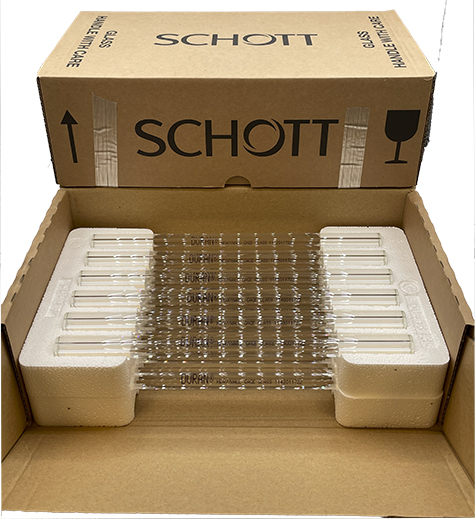

These Bundles are sold by the DOZEN (12pcs) at a discounted rate! Discounts vary depending on quantity:

  • 1-3 Bundles - 10% OFF
  • 4-6 Bundles - 25% OFF
  • 7 Bundles or more - 35% OFF

*Longer Lengths over 72" can be purchased by calling us at 770-957-9599*

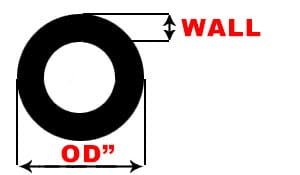

*Please note that dimensions are "OD” and Wall Thickness*
Shipping Time: 1-3 Business Day
Express ship options available
All OD of Glass is (+0 , - 1/64") Wall Thickness 3/16" (+3/64", -0)
Size Length Temperature
Up to
150°F @ PSI 		Steam Service
425°F @ PSI 		Description Price per Dozen (12pcs) Qty
5/8" O.D. 12" 600 340 CLHW-5812-BDL | 5/8" O.D. | 12" Length $362.21 Add to Cart
5/8" O.D. 16" 600 325 CLHW-5816-BDL | 5/8" O.D. | 16" Length $870.28 Add to Cart
5/8" O.D. 20" 600 315 CLHW-5820-BDL | 5/8" O.D. | 20" Length $870.28 Add to Cart
5/8" O.D. 24" 580 300 CLHW-5824-BDL | 5/8" O.D. | 24" Length $870.28 Add to Cart
5/8" O.D. 30" 550 Not Recommended CLHW-5830-BDL | 5/8" O.D. | 30" Length $1,085.30 Add to Cart
5/8" O.D. 36" * 500 Not Recommended CLHW-5836-BDL | 5/8" O.D. | 36" Length $1,085.30 Add to Cart
5/8" O.D. 48" *
(Max) 		340 Not Recommended CLHW-5848-BDL | 5/8" O.D. | 48" Length $1,435.24 Add to Cart
All OD of Glass is (+1/64 , - 3/64") Wall Thickness 7/32" (+ 1/16", -0)
Size Length Temperature
Up to
150°F @ PSI 		Steam Service
425°F @ PSI 		Description Price per Dozen (12pcs) Qty
3/4" O.D. 12" 600 340 CLHW-3412-BDL | 3/4" O.D. | 12" Length $481.67 Add to Cart
3/4" O.D. 16" 600 325 CLHW-3416-BDL | 3/4" O.D. | 16" Length $995.54 Add to Cart
3/4" O.D. 20" 600 315 CLHW-3420-BDL | 3/4" O.D. | 20" Length $995.54 Add to Cart
3/4" O.D. 24" 580 300 CLHW-3424-BDL | 3/4" O.D. | 24" Length $995.54 Add to Cart
3/4" O.D. 30" 550 Not Recommended CLHW-3430-BDL | 3/4" O.D. | 30" Length $1,226.15 Add to Cart
3/4" O.D. 36" * 500 Not Recommended CLHW-3436-BDL | 3/4" O.D. | 36" Length $1,226.15 Add to Cart
3/4" O.D. 48" *
(Max) 		240 Not Recommended CLHW-3448-BDL | 3/4" O.D. | 48" Length $1,627.16 Add to Cart
