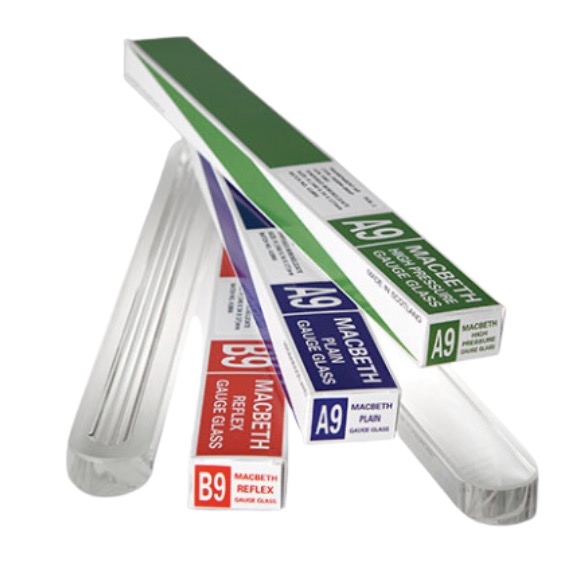

Macbeth Plain Transparent & Reflex Glass In Stock

Item Name:

Macbeth Borosilicate Flat Glass

Description:

These high quality gauge glasses are for use in armored-type gauge assemblies for observation of high temperature and high pressure liquid levels. Safety and quality starts with the use of special quality borosilicate glass that is manufactured under carefully controlled conditions. The glass is tempered to provide high strength and has a low degree of thermal expansion to resist thermal shock.



  • Type A - Plain Glass is designed for moderate-pressure steam boilers and liquid level indicators.
  • Type A - High Pressure is controlled to tighter flatness
    tolerances to be used in higher pressure applications.
  • Type B - Reflex Glass is made for ease in determining liquid
    levels, especially in clear fluids. The glass has vertical
    prisms extending the full viewing length of the glass.
    The prism side faces the liquid, and the sections of the
    prisms not covered in liquid reflect light brilliantly. The
    sections covered by liquids appear dark in contrast.



Specifications:

  • ​DIN 7081
  • BS 3463
  • MIL-G-16356 D (High Pressure Type only)
Shipping Time: Same Day In Stock
Express ship options available
Specifications - Type A Macbeth Plain Transparent Glass
Item # Size
Type A - Plain Glass 		Description Price Qty
3400MB-04T 190mm x 34mm x 17mm #4 Macbeth Plain Transparent Glass $28.00 Add to Cart
3400MB-05T 220mm x 34mm x 17mm #5 Macbeth Plain Transparent Glass $31.00 Add to Cart
3400MB-06T 250mm x 34mm x 17mm #6 Macbeth Plain Transparent Glass $33.00 Add to Cart
3400MB-07T 280mm x 34mm x 17mm #7 Macbeth Plain Transparent Glass $36.00 Add to Cart
3400MB-08T 320mm x 34mm x 17mm #8 Macbeth Plain Transparent Glass $39.00 Add to Cart
3400MB-09T 340mm x 34mm x 17mm #9 Macbeth Plain Transparent Glass $42.00 Add to Cart
Specifications - Type B Macbeth Reflex Glass
Item # Size
Type B - Reflex Glass 		Description Price Qty
3400MB-03R 165mm x 34mm x 17mm #3 Macbeth Reflex Glass $40.55 Add to Cart
3400MB-04R 190mm x 34mm x 17mm #4 Macbeth Reflex Glass $40.55 Add to Cart
3400MB-05R 220mm x 34mm x 17mm #5 Macbeth Reflex Glass $43.88 Add to Cart
3400MB-06R 250mm x 34mm x 17mm #6 Macbeth Reflex Glass $52.16 Add to Cart
3400MB-07R 280mm x 34mm x 17mm #7 Macbeth Reflex Glass $52.16 Add to Cart
3400MB-08R 320mm x 34mm x 17mm #8 Macbeth Reflex Glass $53.88 Add to Cart
3400MB-09R 340mm x 34mm x 17mm #9 Macbeth Reflex Glass $58.33 Add to Cart
Specifications - Type A Macbeth High Pressure Transparent Glass
Item # Size
Type A - High Pressure Glass 		Description Price Qty
3400MB-03THP 165mm x 34mm x 17mm #3 Macbeth High Pressure Transparent Glass
3400MB-04THP 190mm x 34mm x 17mm #4 Macbeth High Pressure Transparent Glass $64.38 Add to Cart
3400MB-05THP 220mm x 34mm x 17mm #5 Macbeth High Pressure Transparent Glass $72.22 Add to Cart
3400MB-06THP 250mm x 34mm x 17mm #6 Macbeth High Pressure Transparent Glass $76.61 Add to Cart
3400MB-07THP 280mm x 34mm x 17mm #7 Macbeth High Pressure Transparent Glass $83.88 Add to Cart
3400MB-08THP 320mm x 34mm x17mm #8 Macbeth High Pressure Transparent Glass $85.50 Add to Cart
3400MB-09THP 340mm x 34mm x 17mm #9 Macbeth High Pressure Transparent Glass $89.94 Add to Cart
