Durabla Vacuum Breakers In Stock

Item Name:

DFT Vacuum Breakers

Description:

DFT Durabla Vacuum Breakers provide effective protection against collapse of pressure vessels, tanks and rolls. They prevent condensate "back-up" when equipment is shut down or inlet steam is reduced by modulating control valves. In piping systems, DFT Durabla Vacuum Breakers are used to break siphons, prevent pipe collapse during transient pressure drops, and to provide addition of air on the downstream side of check valves to dampen water hammer.



Features:

  • 1" - 4" Size

  • 450 - 600 CWP

  • Threaded O.D. (MNPT)

  • Unthreaded Inlet Bore

  • Stainless Steel Construction

  • Spring-assisted Silent Closing

  • Horizontal or Vertical Installation

  • Tight Shut-Off

  • Soft Seat Option

  • Easy Maintenance

  • Versatile



Cracking pressure for vertical flow will be slightly different: upward flow, slightly higher; downward flow, slightly less.

*(1) - Light spring available: Cracking Pressure = .18 PSI (5.0 inches of water)

*(2) 0.24 PSI Crack Pressure Spring (+/- 10%)
Shipping Time: 1-3 Business Day
Express ship options available
Technical Information
CV Friction Loss
(Feet of Pipe) 		Valve Cracking
Pressure* (PSI) 		Valve Cracking Pressure*
(Inches of Water)
5.8 7 0.60(1) 16.7
13.2 6 0.45 12.5
23.1 7 0.38 10.5
36 12.5 0.20 5.5
57.4 11 0.14 3.9
90 16 0.15 4.3

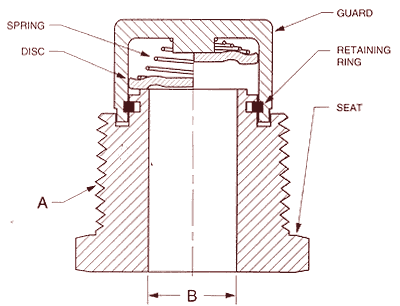

Specifications
Part # Durabla Model Size Nominal Size
(MNPT) A 		Unthreaded Inlet
Bore B 		Price Qty
8033 BSSV 1" 1" .56" (14mm) $105.00 Add to Cart
8103 BSSV 1" 1" .56" (14mm)
8034 BSSV 1-1/2" 1-1/2" .88 (22mm) $181.25 Add to Cart
8035 BSSV 2" 2" 1.09" (28mm) $218.75 Add to Cart
8036 BSSV 2-1/2" 2-1/2" 1-1/2" (38mm) $295.00 Add to Cart
8037 BSSV 3" 3" 1.72" (44 mm)
8038 BSSV 4" 4" 2.22" (56 mm)
8094 BSSV6 1 1" 0.56" (14 mm)
8095 BSSV6 1-1/2 1-1/2" 0.88" (22 mm)
8096 BSSV6 2 2" 1.09" (28 mm)
8097 BSSV6 2-1/2 2-1/2" 1-1/2" (38 mm)
8098 BSSV6 3 3" 1.72" (44 mm)
8099 BSSV6 4 4" 2.22" (56 mm)
