Bell & Gossett Steam to Water U-Tube Heat Exchanger In Stock

Item Name:

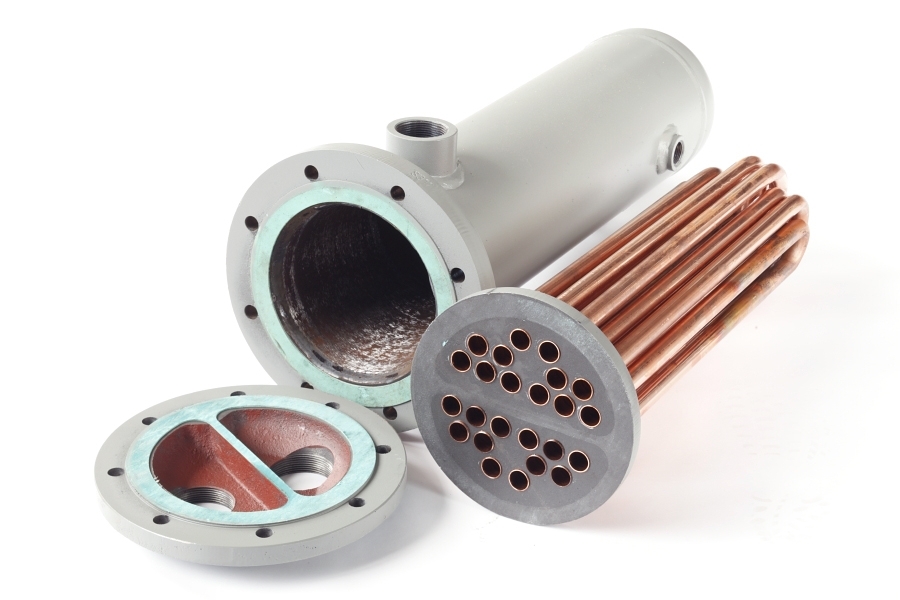

Bell & Gossett Steam to Water U-Tube Heat Exchanger

Description:

Standard Bell & Gossett Steam to Water (SU) complete heat exchangers. 2 and 4 pass units, 4" nominal thru 12" nominal come CRN stamped.



The B&G Shell & Tube heat exchangers provide dependable, efficient heat transfer in many applications ranging from HVAC to industrial installations. B&G Shell & Tube heat exchangers are designed for higher-pressure applications in oil refineries and other large chemical processes.



Materials:

Standard copper (tubes), carbon steel (shell, tube sheet, baffles) optional Brass (tubes, tube sheets, baffles), bronze (heads), stainless steel (tubes, tube sheets, heads, shells, baffles), 90/10 Cu-Ni (tubes)



Power Plus Heat Exchanger and Tube Bundle Guarantee



Removal and Installation of Heat Exchangers and Tube Bundles



Measuring instructions for replacement heat exchanger

Shipping Time: 1-3 Business Day
Specifications
Item # Type 12- Digit
B&G Dwg. No.
B&G (New)
Hard Part #
Head
Material
Shell
Material
Diameter,
inches

SU42-2 2 Pass 5-260-04-024-011 BY526004024011 Cast Iron Steel 4 Add to RFQ
SU43-2 2 Pass 5-260-04-036-011 BY526004036011 Cast Iron Steel 4 Add to RFQ
SU44-2 2 Pass 5-260-04-048-011 BY526004048011 Cast Iron Steel 4 Add to RFQ
SU45-2 2 Pass 5-260-04-060-011 BY526004060011 Cast Iron Steel 4 Add to RFQ
SU46-2 2 Pass 5-260-04-072-011 BY526004072011 Cast Iron Steel 4 Add to RFQ
SU47-2 2 Pass 5-260-04-084-011 BY526004084011 Cast Iron Steel 4 Add to RFQ
SU42-4 4 Pass 5-260-04-024-012 BY526004024012 Cast Iron Steel 4 Add to RFQ
SU43-4 4 Pass 5-260-04-036-012 BY526004036012 Cast Iron Steel 4 Add to RFQ
SU44-4 4 Pass 5-260-04-048-012 BY526004048012 Cast Iron Steel 4 Add to RFQ
SU45-4 4 Pass 5-260-04-060-012 BY526004060012 Cast Iron Steel 4 Add to RFQ
SU46-4 4 Pass 5-260-04-072-012 BY526004072012 Cast Iron Steel 4 Add to RFQ
SU47-4 4 Pass 5-260-04-084-012 BY526004084012 Cast Iron Steel 4 Add to RFQ
SU62-2 2 Pass 5-260-06-024-001 BY526006024001 Cast Iron Steel 6 Add to RFQ
SU63-2 2 Pass 5-260-06-036-001 BY526006036001 Cast Iron Steel 6 Add to RFQ
SU64-2 2 Pass 5-260-06-048-001 BY526006048001 Cast Iron Steel 6 Add to RFQ
SU65-2 2 Pass 5-260-06-060-001 BY526006060001 Cast Iron Steel 6 Add to RFQ
SU66-2 2 Pass 5-260-06-072-001 BY526006072001 Cast Iron Steel 6 Add to RFQ
SU67-2 2 Pass 5-260-06-084-001 BY526006084001 Cast Iron Steel 6 Add to RFQ
SU68-2 2 Pass 5-260-06-096-001 BY526006096001 Cast Iron Steel 6 Add to RFQ
SU62-4 4 Pass 5-260-06-024-002 BY526006024002 Cast Iron Steel 6 Add to RFQ
SU63-4 4 Pass 5-260-06-036-002 BY526006036002 Cast Iron Steel 6 Add to RFQ
SU64-4 4 Pass 5-260-06-048-002 BY526006048002 Cast Iron Steel 6 Add to RFQ
SU65-4 4 Pass 5-260-06-060-002 BY526006060002 Cast Iron Steel 6 Add to RFQ
SU66-4 4 Pass 5-260-06-072-002 BY526006072002 Cast Iron Steel 6 Add to RFQ
SU67-4 4 Pass 5-260-06-084-002 BY526006084002 Cast Iron Steel 6 Add to RFQ
SU68-4 4 Pass 5-260-06-096-002 BY526006096002 Cast Iron Steel 6 Add to RFQ
Item Name:

Bell & Gossett Steam to Water U-Tube Heat Exchanger

Shipping Time: 1-3 Business Day
Specifications
Item # Type 12- Digit
B&G Dwg. No.
B&G (New)
Hard Part #
Head
Material
Shell
Material
Diameter,
inches

SU82-2 2 Pass 5-260-08-024-001 BY526008024001 Cast Iron Steel 8 Add to RFQ
SU83-2 2 Pass 5-260-08-036-001 BY526008036001 Cast Iron Steel 8 Add to RFQ
SU84-2 2 Pass 5-260-08-048-001 BY526008048001 Cast Iron Steel 8 Add to RFQ
SU85-2 2 Pass 5-260-08-060-001 BY526008060001 Cast Iron Steel 8 Add to RFQ
SU86-2 2 Pass 5-260-08-072-001 BY526008072001 Cast Iron Steel 8 Add to RFQ
SU87-2 2 Pass 5-260-08-084-001 BY526008084001 Cast Iron Steel 8 Add to RFQ
SU88-2 2 Pass 5-260-08-096-001 BY526008096001 Cast Iron Steel 8 Add to RFQ
SU89-2 2 Pass 5-260-08-108-001 BY526008108001 Cast Iron Steel 8 Add to RFQ
SU82-4 4 Pass 5-260-08-024-002 BY526008024002 Cast Iron Steel 8 Add to RFQ
SU83-4 4 Pass 5-260-08-036-002 BY526008036002 Cast Iron Steel 8 Add to RFQ
SU84-4 4 Pass 5-260-08-048-002 BY526008048002 Cast Iron Steel 8 Add to RFQ
SU85-4 4 Pass 5-260-08-060-002 BY526008060002 Cast Iron Steel 8 Add to RFQ
SU86-4 4 Pass 5-260-08-072-002 BY526008072002 Cast Iron Steel 8 Add to RFQ
SU87-4 4 Pass 5-260-08-084-002 BY526008084002 Cast Iron Steel 8 Add to RFQ
SU88-4 4 Pass 5-260-08-096-002 BY526008096002 Cast Iron Steel 8 Add to RFQ
SU89-4 4 Pass 5-260-08-108-002 BY526008108002 Cast Iron Steel 8 Add to RFQ
SU82-6 6 Pass 5-260-08-024-003 BY526008024003 Cast Iron Steel 8 Add to RFQ
SU83-6 6 Pass 5-260-08-036-003 BY526008036003 Cast Iron Steel 8 Add to RFQ
SU84-6 6 Pass 5-260-08-048-003 BY526008048003 Cast Iron Steel 8 Add to RFQ
SU85-6 6 Pass 5-260-08-060-003 BY526008060003 Cast Iron Steel 8 Add to RFQ
SU86-6 6 Pass 5-260-08-072-003 BY526008072003 Cast Iron Steel 8 Add to RFQ
SU87-6 6 Pass 5-260-08-084-003 BY526008084003 Cast Iron Steel 8 Add to RFQ
SU88-6 6 Pass 5-260-08-096-003 BY526008096003 Cast Iron Steel 8 Add to RFQ
SU89-6 6 Pass 5-260-08-108-003 BY526008108003 Cast Iron Steel 8 Add to RFQ
Item Name:

Bell & Gossett Steam to Water U-Tube Heat Exchanger

Shipping Time: 1-3 Business Day
Specifications
Item # Type 12- Digit
B&G Dwg. No.
B&G (New)
Hard Part #
Head
Material
Shell
Material
Diameter,
inches

SU102-2 2 Pass 5-260-10-024-001 BY526010024001 Cast Iron Steel 10 Add to RFQ
SU103-2 2 Pass 5-260-10-036-001 BY526010036001 Cast Iron Steel 10 Add to RFQ
SU104-2 2 Pass 5-260-10-048-001 BY526010048001 Cast Iron Steel 10 Add to RFQ
SU105-2 2 Pass 5-260-10-060-001 BY526010060001 Cast Iron Steel 10 Add to RFQ
SU106-2 2 Pass 5-260-10-072-001 BY526010072001 Cast Iron Steel 10 Add to RFQ
SU107-2 2 Pass 5-260-10-084-001 BY526010084001 Cast Iron Steel 10 Add to RFQ
SU108-2 2 Pass 5-260-10-096-001 BY526010096001 Cast Iron Steel 10 Add to RFQ
SU109-2 2 Pass 5-260-10-108-001 BY526010108001 Cast Iron Steel 10 Add to RFQ
SU1010-2 2 Pass 5-260-10-120-001 BY526010120001 Cast Iron Steel 10 Add to RFQ
SU102-4 4 Pass 5-260-10-024-002 BY526010024002 Cast Iron Steel 10 Add to RFQ
SU103-4 4 Pass 5-260-10-036-002 BY526010036002 Cast Iron Steel 10 Add to RFQ
SU104-4 4 Pass 5-260-10-048-002 BY526010048002 Cast Iron Steel 10 Add to RFQ
SU105-4 4 Pass 5-260-10-060-002 BY526010060002 Cast Iron Steel 10 Add to RFQ
SU106-4 4 Pass 5-260-10-072-002 BY526010072002 Cast Iron Steel 10 Add to RFQ
SU107-4 4 Pass 5-260-10-084-002 BY526010084002 Cast Iron Steel 10 Add to RFQ
SU108-4 4 Pass 5-260-10-096-002 BY526010096002 Cast Iron Steel 10 Add to RFQ
SU109-4 4 Pass 5-260-10-108-002 BY526010108002 Cast Iron Steel 10 Add to RFQ
SU1010-4 4 Pass 5-260-10-120-002 BY526010120002 Cast Iron Steel 10 Add to RFQ
