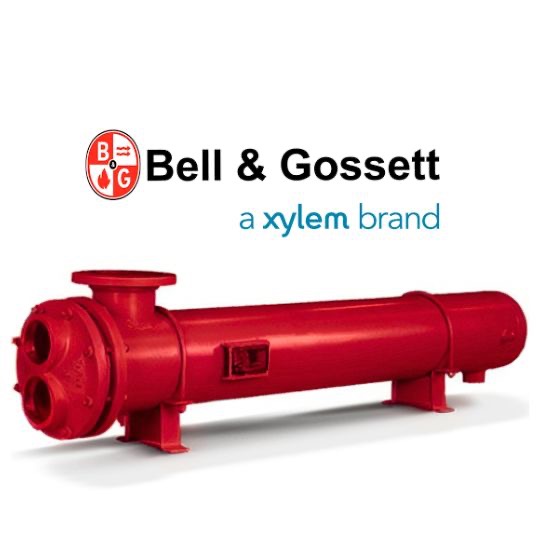

Bell & Gossett Steam to Water Double Wall Heat Exchanger In Stock

Item Name:

Bell & Gossett Steam to Liquid Double Wall Heat Exchangers

Description:

Bell & Gossett Double wall heat exchangers are used mostly for potable water & cooling system applications, or where cross contamination cannot occur.



The B&G Shell & Tube heat exchangers provide dependable, efficient heat transfer in many applications ranging from HVAC to industrial installations. B&G Shell & Tube heat exchangers are designed for higher-pressure applications in oil refineries and other large chemical processes.



Materials:

Standard copper (tubes), carbon steel (shell, tube sheet, baffles) optional Brass (tubes, tube sheets, baffles), bronze (heads), stainless steel (tubes, tube sheets, heads, shells, baffles), 90/10 Cu-Ni (tubes)



Power Plus Heat Exchanger and Tube Bundle Guarantee



Removal and Installation of Heat Exchangers and Tube Bundles



Measuring instructions for replacement heat exchanger
Shipping Time: 1-3 Business Day
Express ship options available
Specifications
Item # Type Heating
Surface, ft² 		Design
Pressure 		Tube Sheet
Material 		Head
Material
DSU42-2 2 Pass 4.5 150 Steel Cast Iron Bonnet Add to RFQ
DSU43-2 2 Pass 6.8 150 Steel Cast Iron Bonnet Add to RFQ
DSU44-2 2 Pass 9.2 150 Steel Cast Iron Bonnet Add to RFQ
DSU45-2 2 Pass 11.5 150 Steel Cast Iron Bonnet Add to RFQ
DSU46-2 2 Pass 13.9 150 Steel Cast Iron Bonnet Add to RFQ
DSU47-2 2 Pass 16.9 150 Steel Cast Iron Bonnet Add to RFQ
DSU42-4 4 Pass 4.5 150 Steel Cast Iron Bonnet Add to RFQ
DSU43-4 4 Pass 6.8 150 Steel Cast Iron Bonnet Add to RFQ
DSU44-4 4 Pass 9.2 150 Steel Cast Iron Bonnet Add to RFQ
DSU45-4 4 Pass 11.5 150 Steel Cast Iron Bonnet Add to RFQ
DSU46-4 4 Pass 13.9 150 Steel Cast Iron Bonnet Add to RFQ
DSU47-4 4 Pass 16.9 150 Steel Cast Iron Bonnet Add to RFQ
DSU62-2 2 Pass 8 150 Steel Cast Iron Bonnet Add to RFQ
DSU63-2 2 Pass 12.7 150 Steel Cast Iron Bonnet Add to RFQ
DSU64-2 2 Pass 17.4 150 Steel Cast Iron Bonnet Add to RFQ
DSU65-2 2 Pass 22.1 150 Steel Cast Iron Bonnet Add to RFQ
DSU66-2 2 Pass 26.8 150 Steel Cast Iron Bonnet Add to RFQ
DSU67-2 2 Pass 31.5 150 Steel Cast Iron Bonnet Add to RFQ
DSU68-2 2 Pass 36.2 150 Steel Cast Iron Bonnet Add to RFQ
DSU62-4 4 Pass 8 150 Steel Cast Iron Bonnet Add to RFQ
DSU63-4 4 Pass 12.7 150 Steel Cast Iron Bonnet Add to RFQ
DSU64-4 4 Pass 17.4 150 Steel Cast Iron Bonnet Add to RFQ
DSU65-4 4 Pass 22.1 150 Steel Cast Iron Bonnet Add to RFQ
DSU66-4 4 Pass 26.8 150 Steel Cast Iron Bonnet Add to RFQ
DSU67-4 4 Pass 31.5 150 Steel Cast Iron Bonnet Add to RFQ
DSU68-4 4 Pass 36.2 150 Steel Cast Iron Bonnet Add to RFQ
DSU62-6 6 Pass 6 150 Steel Cast Iron Bonnet Add to RFQ
DSU63-6 6 Pass 9.6 150 Steel Cast Iron Bonnet Add to RFQ
DSU64-6 6 Pass 13.1 150 Steel Cast Iron Bonnet Add to RFQ
DSU65-6 6 Pass 16.7 150 Steel Cast Iron Bonnet Add to RFQ
DSU66-6 6 Pass 20.2 150 Steel Cast Iron Bonnet Add to RFQ
DSU67-6 6 Pass 23.8 150 Steel Cast Iron Bonnet Add to RFQ
DSU68-6 6 Pass 27.3 150 Steel Cast Iron Bonnet Add to RFQ
DSU82-2 2 Pass 15 150 Steel Cast Iron Bonnet Add to RFQ
DSU83-2 2 Pass 23 150 Steel Cast Iron Bonnet Add to RFQ
DSU84-2 2 Pass 32 150 Steel Cast Iron Bonnet Add to RFQ
DSU85-2 2 Pass 41 150 Steel Cast Iron Bonnet Add to RFQ
DSU86-2 2 Pass 49 150 Steel Cast Iron Bonnet Add to RFQ
DSU87-2 2 Pass 58 150 Steel Cast Iron Bonnet Add to RFQ
DSU88-2 2 Pass 67 150 Steel Cast Iron Bonnet Add to RFQ
DSU89-2 2 Pass 75 150 Steel Cast Iron Bonnet Add to RFQ
DSU82-4 4 Pass 15 150 Steel Cast Iron Bonnet Add to RFQ
DSU83-4 4 Pass 23 150 Steel Cast Iron Bonnet Add to RFQ
DSU84-4 4 Pass 32 150 Steel Cast Iron Bonnet Add to RFQ
DSU85-4 4 Pass 41 150 Steel Cast Iron Bonnet Add to RFQ
DSU86-4 4 Pass 49 150 Steel Cast Iron Bonnet Add to RFQ
DSU87-4 4 Pass 58 150 Steel Cast Iron Bonnet Add to RFQ
DSU88-4 4 Pass 67 150 Steel Cast Iron Bonnet Add to RFQ
DSU89-4 4 Pass 75 150 Steel Cast Iron Bonnet Add to RFQ
DSU82-6 6 Pass 12 150 Steel Cast Iron Bonnet Add to RFQ
DSU83-6 6 Pass 19 150 Steel Cast Iron Bonnet Add to RFQ
DSU84-6 6 Pass 26 150 Steel Cast Iron Bonnet Add to RFQ
DSU85-6 6 Pass 33 150 Steel Cast Iron Bonnet Add to RFQ
DSU86-6 6 Pass 41 150 Steel Cast Iron Bonnet Add to RFQ
DSU87-6 6 Pass 48 150 Steel Cast Iron Bonnet Add to RFQ
DSU88-6 6 Pass 55 150 Steel Cast Iron Bonnet Add to RFQ
DSU 89-6 6 Pass 62 150 Steel Cast Iron Bonnet Add to RFQ
DSU102-2 2 Pass 27 125 Steel Cast Iron Bonnet Add to RFQ
DSU103-2 2 Pass 42 125 Steel Cast Iron Bonnet Add to RFQ
DSU104-2 2 Pass 56 125 Steel Cast Iron Bonnet Add to RFQ
DSU105-2 2 Pass 71 125 Steel Cast Iron Bonnet Add to RFQ
DSU106-2 2 Pass 86 125 Steel Cast Iron Bonnet Add to RFQ
DSU107-2 2 Pass 101 125 Steel Cast Iron Bonnet Add to RFQ
DSU108-2 2 Pass 116 125 Steel Cast Iron Bonnet Add to RFQ
DSU109-2 2 Pass 131 125 Steel Cast Iron Bonnet Add to RFQ
DSU1010-2 2 Pass 146 125 Steel Cast Iron Bonnet Add to RFQ
DSU102-4 4 Pass 25 150 Steel Cast Iron Bonnet Add to RFQ
DSU103-4 4 Pass 39 150 Steel Cast Iron Bonnet Add to RFQ
DSU104-4 4 Pass 53 150 Steel Cast Iron Bonnet Add to RFQ
DSU105-4 4 Pass 67 150 Steel Cast Iron Bonnet Add to RFQ
DSU106-4 4 Pass 82 150 Steel Cast Iron Bonnet Add to RFQ
DSU107-4 4 Pass 96 150 Steel Cast Iron Bonnet Add to RFQ
DSU108-4 4 Pass 110 150 Steel Cast Iron Bonnet Add to RFQ
DSU109-4 4 Pass 124 150 Steel Cast Iron Bonnet Add to RFQ
DSU1010-4 4 Pass 138 150 Steel Cast Iron Bonnet Add to RFQ
DSU102-6 6 Pass 21 150 Steel Cast Iron Bonnet Add to RFQ
DSU103-6 6 Pass 33 150 Steel Cast Iron Bonnet Add to RFQ
DSU104-6 6 Pass 45 150 Steel Cast Iron Bonnet Add to RFQ
DSU105-6 6 Pass 56 150 Steel Cast Iron Bonnet Add to RFQ
DSU106-6 6 Pass 68 150 Steel Cast Iron Bonnet Add to RFQ
DSU107-6 6 Pass 80 150 Steel Cast Iron Bonnet Add to RFQ
DSU108-6 6 Pass 92 150 Steel Cast Iron Bonnet Add to RFQ
DSU109-6 6 Pass 104 150 Steel Cast Iron Bonnet Add to RFQ
DSU1010-6 6 Pass 116 150 Steel Cast Iron Bonnet Add to RFQ
