Cast Iron Pocketwheels In Stock

Item Name:

Babbitt Cast Iron Pocketwheel

Description:

Pocketwheel style chainwheels are designed to accommodate applications where straight link welded chain is required. The chain channel is designed to accept every other link of straight link chain.



Standard Components

  • Chainwheel

  • Guide arm and cap

  • Zinc plated carbon steel attachment set for clamping to the valve hand wheel

  • Attachment instructions for installing the chainwheel to the hand wheel of the valve



Pocketwheel Uses Hot Dipped Galvanized Welded #2 Machine Chain - GCW-1-5P



*No Masterlink for Pocketwheels*
Shipping Time: 3-5 Business Days
Express ship options available

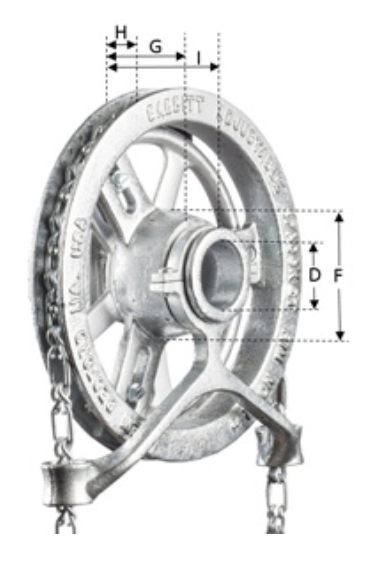

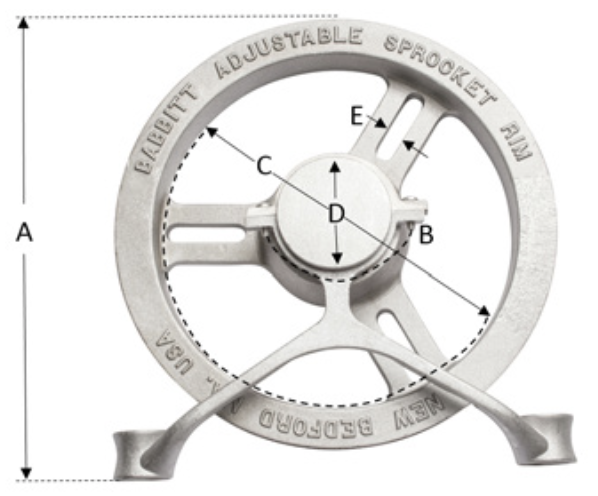

Chain Wheel Dimensions (inch)
Chain Wheel Dimensions (inch)
Babbitt Part # / Wheel Size # CIRG-1.5P CIRG-2P CIRG-2.5P CIRG-3P CIRG-3.5P CIRG-4P CIRG-4.5P
A- OVERALL HEIGHT 7-3/4" 10-1/2" 12-1/2" 15-1/2" 18-1/2" 21-1/2" 25-3/4"
B- INNER BOLT CIRCLE 3-1/2" 4-1/2" 5-1/2" 8-1/2" 11-1/2" 11-1/2" 14-1/2"
C- OUTER BOLT CIRCLE 5" 6-5/8" 9-1/4" 12-3/8" 15-1/2" 17-3/4" 21-1/4"
D- HUB OPENING (DIA) 1" 2-1/8" 2-1/8" 2-1/8" 3" 3" 3"
E- SLOT SIZE (WIDTH) 3/8" 3/8" 7/16" 7/16" 7/16" 5/8" 5/8"
F- REAR OPENING 1-7/8" 3-1/8" 3-1/2" 3-1/2" 4-7/8" 4-7/8" 4-5/8"
G- HUB DEPTH (SHOULDER TO REAR) 1-7/16" 1-3/8" 1-3/4" 1-7/8" 1-7/8" 1-7/8" 1-7/8"
H- RIM THICKNESS 1-1/8" 1-1/8" 1-1/4" 1-1/4" 1-1/4" 1-1/2" 1-1/2"
I- OVERALL DEPTH 2-3/8" 2-3/8" 2-5/8" 2-5/8" 3-1/8" 3-1/8" 3-1/8"
Selection Of Chain Operators
Item # Description Valve Handwheel
OD (inches) 		Chain
Operator # 		Wheel Rim
OD (inches) 		Uses Chain
Size
CIRG-1.5P Cast Iron Pocketwheel
Only CIRG-1.5P 		6 - 7-1/2" 1.5 7-1/2" 2/0 Add to RFQ
CIRG-2P Cast Iron Pocketwheel
Only CIRG-2P 		7-3/4 - 9" 2 9" 2/0 Add to RFQ
CIRG-2.5P Cast Iron Pocketwheel
Only CIRG-2.5P 		9-1/4 - 12-1/2" 2.5 12" 2/0 Add to RFQ
CIRG-3P Cast Iron Pocketwheel
Only CIRG-3P 		12-3/4 - 15-1/2" 3 15-1/2" 2/0 Add to RFQ
CIRG-3.5P Cast Iron Pocketwheel
Only CIRG-3.5P 		15-3/4 - 19" 3.5 18-1/2" 2/0 Add to RFQ
CIRG-4P Cast Iron Pocketwheel
Only CIRG-4P 		19-1/4 - 22" 4 21-1/2" 2/0 Add to RFQ
CIRG-4.5P Cast Iron Pocketwheel
Only CIRG-4.5P 		22-1/2 - 26" 4.5 25-3/4" 2/0 Add to RFQ
Chain Price Per Ft. (#2 Galvanized Chain)
Item # Uses Chain
Trade Size 		Product Description
GCW-1-5P 2/0 Chain Used For All Pocket Wheel Models Add to RFQ
