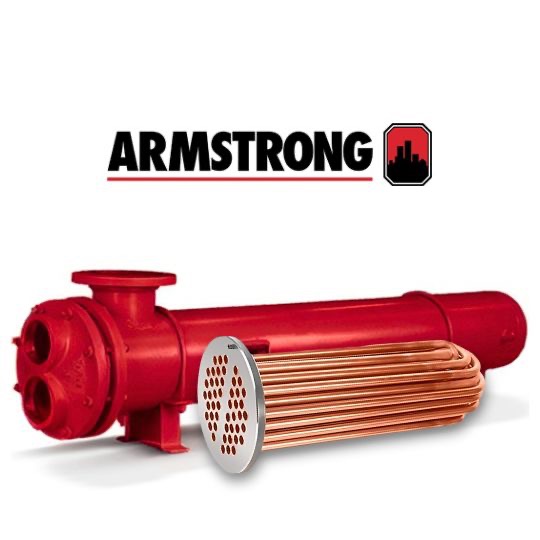

Armstrong Steam to Liquid Shell & Tube Heat Exchanger In Stock

Item Name:

Armstrong Steam to Water U-Tube Heat Exchangers

Description:

Standard Armstrong Steam to Water (WS) complete heat exchangers. 2 and 4 pass units, 4" nominal thru 12" nominal come CRN stamped.



The Armstrong Shell & Tube heat exchangers provide dependable, efficient heat transfer in many applications ranging from HVAC to industrial installations. Armstrong Shell & Tube heat exchangers are designed for higher-pressure applications in oil refineries and other large chemical processes.



Materials:

Standard copper (tubes), carbon steel (shell, tube sheet, baffles) optional Brass (tubes, tube sheets, baffles), bronze (heads), stainless steel (tubes, tube sheets, heads, shells, baffles), 90/10 Cu-Ni (tubes)



Power Plus Heat Exchanger and Tube Bundle Guarantee



Removal and Installation of Heat Exchangers and Tube Bundles



Measuring instructions for replacement heat exchanger
Shipping Time: 1-3 Business Day
Express ship options available
Specifications
Item # Type Shell
Dia, in. 		Shell
Material 		Tube Plate
Material 		Head
Material 		Working
psi. 		Max. Operating
Temp.°F
WS-42-2 2 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
WS-43-2 2 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
WS-44-2 2 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
WS-45-2 2 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
WS-46-2 2 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
WS-47-2 2 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
WS-42-4 4 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
WS-43-4 4 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
WS-44-4 4 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
WS-45-4 4 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
WS-46-4 4 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
WS-47-4 4 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
WS-62-2 2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-63-2 2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-64-2 2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-65-2 2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-66-2 2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-67-2 2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-68-2 2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-62-4 4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-63-4 4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-64-4 4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-65-4 4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-66-4 4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-67-4 4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-68-4 4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
WS-82-2 2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-83-2 2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-84-2 2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-85-2 2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-86-2 2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-87-2 2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-88-2 2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-89-2 2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-82-4 4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-83-4 4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-84-4 4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-85-4 4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-86-4 4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-87-4 4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-88-4 4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-89-4 4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
WS-102-2 2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-103-2 2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-104-2 2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-105-2 2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-106-2 2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-107-2 2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-108-2 2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-109-2 2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-1010-2 2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-102-4 4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-103-4 4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-104-4 4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-105-4 4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-106-4 4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-107-4 4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-108-4 4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-109-4 4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
WS-1010-4 4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
Pressure Ratings
UNIT
DIAMETER 		TEST PRESSURE
PSI TUBES 		TEST PRESSURE
PSI SHELL
4" 300 225
6" 300 225
8" 300 225
10" 300 225
10" 250 225
12" 250 225
14" 250 225
16" 250 225
18" 250 225
20" 250 225

Files:
