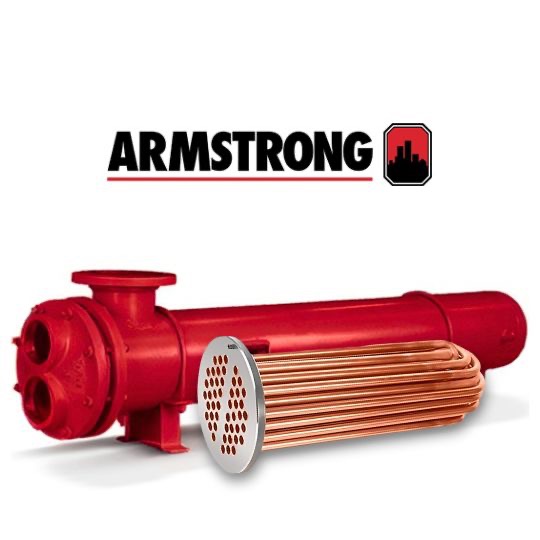

Armstrong Liquid to Liquid Shell & Tube Heat Exchanger In Stock

Item Name:

Armstrong Liquid to Liquid Heat Exchanger

Description:

Standard Armstrong Water to Water (W) complete heat exchangers. 2 and 4 pass units, 4" nominal thru 12" nominal come CRN stamped.



The Armstrong Shell & Tube heat exchangers provide dependable, efficient heat transfer in many applications ranging from HVAC to industrial installations. Armstrong Shell & Tube heat exchangers are designed for higher-pressure applications in oil refineries and other large chemical processes.



Materials:

Standard copper (tubes), carbon steel (shell, tube sheet, baffles) optional Brass (tubes, tube sheets, baffles), bronze (heads), stainless steel (tubes, tube sheets, heads, shells, baffles), 90/10 Cu-Ni (tubes)



Power Plus Heat Exchanger and Tube Bundle Guarantee



Removal and Installation of Heat Exchangers and Tube Bundles



Measuring instructions for replacement heat exchanger
Shipping Time: 1-3 Business Day
Express ship options available
Specifications
Item # Item Name Type Shell
Dia.in. 		Shell
Material 		Tube Plate
Material 		Head
Material 		Working
Pressure, psi. 		Max. Operating
Temp,°F
W-42-22 Water to Water U-Tube
Heat Exchangers 		2 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
W-43-22 Water to Water U-Tube
Heat Exchangers 		2 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
W-44-22 Water to Water U-Tube
Heat Exchangers 		2 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
W-45-22 Water to Water U-Tube
Heat Exchangers 		2 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
W-46-22 Water to Water U-Tube
Heat Exchangers 		2 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
W-47-22 Water to Water U-Tube
Heat Exchangers 		2 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
W-42-42 Water to Water U-Tube
Heat Exchangers 		4 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
W-43-42 Water to Water U-Tube
Heat Exchangers 		4 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
W-44-42 Water to Water U-Tube
Heat Exchangers 		4 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
W-45-42 Water to Water U-Tube
Heat Exchangers 		4 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
W-46-42 Water to Water U-Tube
Heat Exchangers 		4 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
W-47-42 Water to Water U-Tube
Heat Exchangers 		4 Pass 4 Steel Steel Cast Iron 150 375 Add to RFQ
W-62-23 Water to Water U-Tube
Heat Exchangers 		2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-63-23 Water to Water U-Tube
Heat Exchangers 		2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-64-23 Water to Water U-Tube
Heat Exchangers 		2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-65-23 Water to Water U-Tube
Heat Exchangers 		2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-66-23 Water to Water U-Tube
Heat Exchangers 		2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-67-23 Water to Water U-Tube
Heat Exchangers 		2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-68-23 Water to Water U-Tube
Heat Exchangers 		2 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-62-43 Water to Water U-Tube
Heat Exchangers 		4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-63-43 Water to Water U-Tube
Heat Exchangers 		4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-64-43 Water to Water U-Tube
Heat Exchangers 		4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-65-43 Water to Water U-Tube
Heat Exchangers 		4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-66-43 Water to Water U-Tube
Heat Exchangers 		4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-67-43 Water to Water U-Tube
Heat Exchangers 		4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-68-43 Water to Water U-Tube
Heat Exchangers 		4 Pass 6 Steel Steel Cast Iron 150 375 Add to RFQ
W-82-24 Water to Water U-Tube
Heat Exchangers 		2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-83-24 Water to Water U-Tube
Heat Exchangers 		2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-84-24 Water to Water U-Tube
Heat Exchangers 		2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-85-24 Water to Water U-Tube
Heat Exchangers 		2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-86-24 Water to Water U-Tube
Heat Exchangers 		2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-87-24 Water to Water U-Tube
Heat Exchangers 		2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-88-24 Water to Water U-Tube
Heat Exchangers 		2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-89-24 Water to Water U-Tube
Heat Exchangers 		2 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-82-44 Water to Water U-Tube
Heat Exchangers 		4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-83-44 Water to Water U-Tube
Heat Exchangers 		4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-84-44 Water to Water U-Tube
Heat Exchangers 		4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-85-44 Water to Water U-Tube
Heat Exchangers 		4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-86-44 Water to Water U-Tube
Heat Exchangers 		4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-87-44 Water to Water U-Tube
Heat Exchangers 		4 Pass 8 Steel Steel Cast Iron 150 375 Add to RFQ
W-88-44 Water to Water U-Tube
Heat Exchangers 		4 Pass 8 Steel Steel Cast Iron 375 Add to RFQ
W-89-44 Water to Water U-Tube
Heat Exchangers 		4 Pass 8 Steel Steel Cast Iron 375 Add to RFQ
W-102-25 Water to Water U-Tube
Heat Exchangers 		2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-103-25 Water to Water U-Tube
Heat Exchangers 		2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-104-25 Water to Water U-Tube
Heat Exchangers 		2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-105-25 Water to Water U-Tube
Heat Exchangers 		2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-106-25 Water to Water U-Tube
Heat Exchangers 		2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-107-25 Water to Water U-Tube
Heat Exchangers 		2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-108-25 Water to Water U-Tube
Heat Exchangers 		2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-109-25 Water to Water U-Tube
Heat Exchangers 		2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-1010-25 Water to Water U-Tube
Heat Exchangers 		2 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-102-45 Water to Water U-Tube
Heat Exchangers 		4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-103-45 Water to Water U-Tube
Heat Exchangers 		4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-104-45 Water to Water U-Tube
Heat Exchangers 		4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-105-45 Water to Water U-Tube
Heat Exchangers 		4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-106-45 Water to Water U-Tube
Heat Exchangers 		4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-107-45 Water to Water U-Tube
Heat Exchangers 		4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-108-45 Water to Water U-Tube
Heat Exchangers 		4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-109-45 Water to Water U-Tube
Heat Exchangers 		4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ
W-1010-45 Water to Water U-Tube
Heat Exchangers 		4 Pass 10 Steel Steel Cast Iron 375 Add to RFQ

Files:
