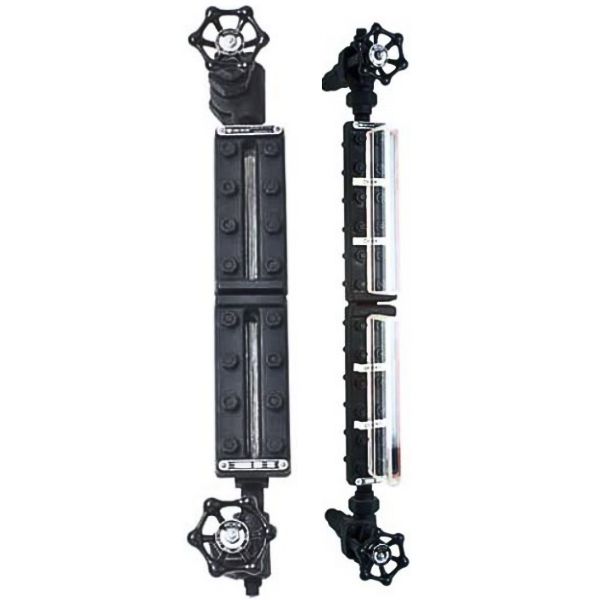

Archon Reflex - Medium Pressure Liquid Level Gauges In Stock

Item Name:

Reflex Medium Pressure Gauges

Description:

ARCHON Liquid Level Gauges come in single or multi-section designs (sizes 1–9) with a one-piece liquid chamber machined from stress-relieved cold-rolled carbon steel. They include drop-forged steel covers, tempered borosilicate glass resistant to thermal shock, heat, corrosion, and abrasion, plus high-temperature bolts, nuts, and precision-cut gaskets. Each glass sits in a recessed chamber that securely holds the gasket so it cannot be displaced by internal pressure. Bolt spacing ensures uniform compression on both glass and gasket.

Gaskets are high-quality, uniformly thick, and accurately die-cut; standard material is compressed non-asbestos, with other materials available for special media. Gauges can also be supplied in stainless steel, Monel, and other alloys.



Reflex Gauges:
Feature flat reflex glass with reflecting prisms—liquid appears dark while the vapor space appears silvery, providing clear, high-contrast level indication.



Connections:

  • 1/2" or 3/4" NPT — end, side, or back connections

  • Stock models: 3/4" NPT female end connections only
Shipping Time: 1-3 Business Day
Express ship options available

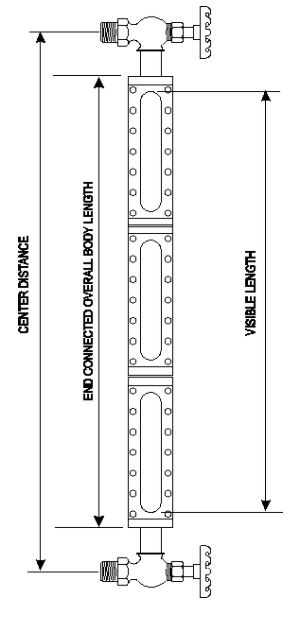

Specifications
Item # Sections
x
Glass Size 		Visible
Length
(Inches) 		Visible
Length
(MM) 		End Connected
Overall Length
(Inches) 		End Connected
Overall Length
(MM)
PPI-ARM11 1 x 1 3.750 95 5.250 133 Add to RFQ
PPI-ARM12 1 x 2 4.750 121 6.250 159 Add to RFQ
PPI-ARM13 1 x 3 5.750 146 7.250 184 Add to RFQ
PPI-ARM14 1 x 4 6.750 171 8.250 210 Add to RFQ
PPI-ARM15 1 x 5 7.875 200 9.375 238 Add to RFQ
PPI-ARM16 1 x 6 9.125 232 10.625 270 Add to RFQ
PPI-ARM17 1 x 7 10.250 2660 11.750 298 Add to RFQ
PPI-ARM18 1 x 8 11.875 302 13.375 340 Add to RFQ
PPI-ARM19 1 x 9 12.625 321 14.125 359 Add to RFQ
PPI-ARM24 2 x 4 15.000 381 16.500 419 Add to RFQ
PPI-ARM25 2 x 5 17.250 438 18.750 476 Add to RFQ
PPI-ARM26 2 x 6 19.750 502 21.250 540 Add to RFQ
PPI-ARM27 2 x 7 22.000 559 23.500 597 Add to RFQ
PPI-ARM28 2 x 8 25.250 6441 26.750 679 Add to RFQ
PPI-ARM29 2 x 9 26.750 679 28.250 718 Add to RFQ
PPI-ARM36 3 x 6 30.375 772 31.875 810 Add to RFQ
PPI-ARM37 3 x 7 33.750 857 35.250 895 Add to RFQ
PPI-ARM38 3 x 8 38.625 981 40.125 1019 Add to RFQ
PPI-ARM39 3 x 9 40.875 1038 42.375 1076 Add to RFQ
PPI-ARM47 4 x 7 45.500 1156 47.000 1194 Add to RFQ
PPI-ARM48 4 x 8 52.000 1321 53.500 1359 Add to RFQ
PPI-ARM49 4 x 9 55.000 1397 56.500 1435 Add to RFQ
PPI-ARM57 5 x 7 57.250 1454 58.750 1492 Add to RFQ
PPI-ARM58 5 x 8 65.375 16661 66.875 1699 Add to RFQ
PPI-ARM59 5 x 9 69.125 1756 70.625 1794 Add to RFQ
PPI-ARM68 6 x 8 78.750 2000 80.250 2038 Add to RFQ
PPI-ARM69 6 x 9 83.250 2115 84.750 2153 Add to RFQ
PPI-ARM78 7 x 8 92.125 2340 93.625 2378 Add to RFQ
PPI-ARM79 7 x 9 97.375 2473 98.875 2511 Add to RFQ
PPI-ARM88 8 x 8 105.500 2680 107.000 2718 Add to RFQ
PPI-ARM89 8 x 9 111.500 2832 113.000 2870 Add to RFQ
PPI-ARM98 9 x 8 118.875 3019 120.375 3058 Add to RFQ
PPI-ARM99 9 x 9 125.625 3191 127.125 3229 Add to RFQ
PPI-ARM108 10 x 8 132.250 3359 133.750 3397 Add to RFQ
PPI-ARM109 10 x 9 139.750 3550 141.250 3588 Add to RFQ
