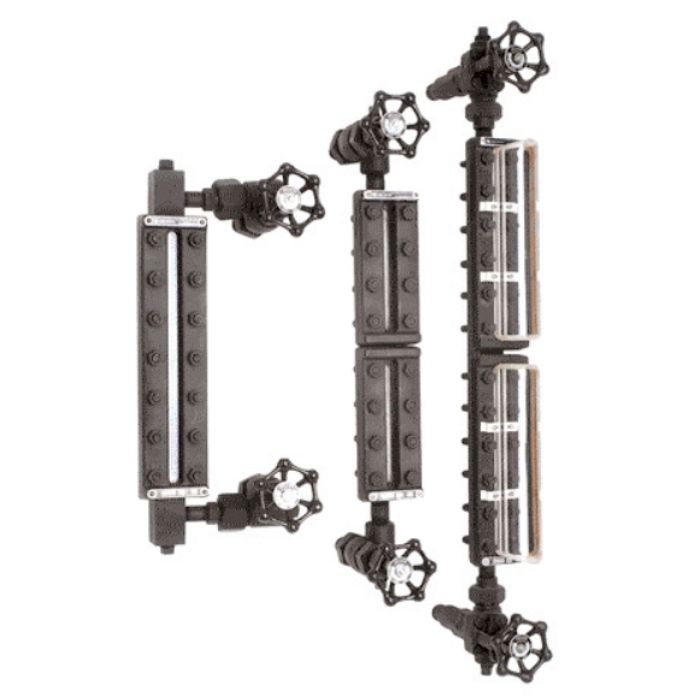

Archon Reflex - High Pressure Liquid Level Gauges In Stock

Item Name:

Archon Reflex High Pressure Gauges

Description:

ARCHON Armored Liquid Level Gauges are high-pressure units built for demanding service. Available in single and multi-section sizes 1–9, each gauge features a one-piece liquid chamber machined from stress-relieved cold-rolled carbon steel. Units include drop-forged steel covers, tempered borosilicate glass resistant to thermal shock, heat, corrosion, and abrasion, plus high-quality gaskets, bolts, and nuts. The recessed liquid chamber securely seats each glass and gasket so internal pressure cannot dislodge them.



Bolts are spaced for uniform compression and made from chrome-moly alloy steel (Bolts: ASTM A193 B7; Nuts: ASTM A194 2H). Gaskets are uniformly die-cut; standard material is compressed non-asbestos, with alternative materials available. Units may also be furnished in stainless steel, Monel, and other alloys.



Archon Reflex Gauges:
Flat reflex glass with precision prisms creates a sharp contrast—liquid appears black, vapor space silvery—for clear level indication.



Connections:

  • 1/2" or 3/4" NPT (end, side, or back)

  • Stock configurations: 3/4" NPT female end connections only
Shipping Time: 1-3 Business Day
Express ship options available

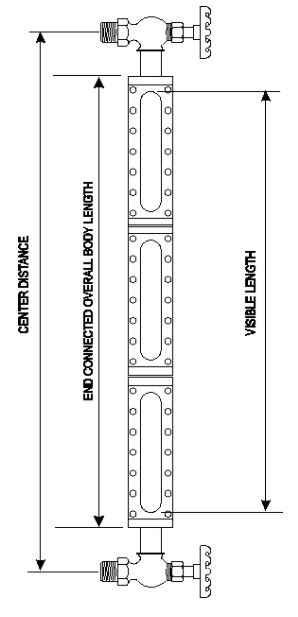

Specifications
Item # Sections
Glass
Size 		Visible
Length
(Inches) 		Visible
Length
(MM) 		End Connected
Overall Length
(Inches) 		End Connected
Overall Length
(MM)
PPI-ARH11 1 x 1 3.750 95 5.250 133 Add to RFQ
PPI-ARH12 1 x 2 4.750 121 6.250 159 Add to RFQ
PPI-ARH13 1 x 3 5.750 146 7.250 184 Add to RFQ
PPI-ARH14 1 x 4 6.750 171 8.250 210 Add to RFQ
PPI-ARH15 1 x 5 7.875 200 9.375 238 Add to RFQ
PPI-ARH16 1 x 6 9.125 232 10.625 270 Add to RFQ
PPI-ARH17 1 x 7 10.250 2660 11.750 298 Add to RFQ
PPI-ARH18 1 x 8 11.875 302 13.375 340 Add to RFQ
PPI-ARH19 1 x 9 12.625 321 14.125 359 Add to RFQ
PPI-ARH24 2 x 4 15.000 381 16.500 419 Add to RFQ
PPI-ARH25 2 x 5 17.250 438 18.750 476 Add to RFQ
PPI-ARH26 2 x 6 19.750 502 21.250 540 Add to RFQ
PPI-ARH27 2 x 7 22.000 559 23.500 597 Add to RFQ
PPI-ARH28 2 x 8 25.250 6441 26.750 679 Add to RFQ
PPI-ARH29 2 x 9 26.750 679 28.250 718 Add to RFQ
PPI-ARH36 3 x 6 30.375 772 31.875 810 Add to RFQ
PPI-ARH37 3 x 7 33.750 857 35.250 895 Add to RFQ
PPI-ARH38 3 x 8 38.625 981 40.125 1019 Add to RFQ
PPI-ARH39 3 x 9 40.875 1038 42.375 1076 Add to RFQ
PPI-ARH47 4 x 7 45.500 1156 47.000 1194 Add to RFQ
PPI-ARH48 4 x 8 52.000 1321 53.500 1359 Add to RFQ
PPI-ARH49 4 x 9 55.000 1397 56.500 1435 Add to RFQ
PPI-ARH57 5 x 7 57.250 1454 58.750 1492 Add to RFQ
PPI-ARH58 5 x 8 65.375 16661 66.875 1699 Add to RFQ
PPI-ARH59 5 x 9 69.125 1756 70.625 1794 Add to RFQ
PPI-ARH68 6 x 8 78.750 2000 80.250 2038 Add to RFQ
PPI-ARH69 6 x 9 83.250 2115 84.750 2153 Add to RFQ
PPI-ARH78 7 x 8 92.125 2340 93.625 2378 Add to RFQ
PPI-ARH79 7 x 9 97.375 2473 98.875 2511 Add to RFQ
PPI-ARH88 8 x 8 105.500 2680 107.000 2718 Add to RFQ
PPI-ARH89 8 x 9 111.500 2832 113.000 2870 Add to RFQ
PPI-ARH98 9 x 8 118.875 3019 120.375 3058 Add to RFQ
PPI-ARH99 9 x 9 125.625 3191 127.125 3229 Add to RFQ
PPI-ARH108 10 x 8 132.250 3359 133.750 3397 Add to RFQ
PPI-ARH109 10 x 9 139.750 3550 141.250 3588 Add to RFQ
